| Model | TP1607 |
| Flow Rate Range | 0-35L/min |
| Operating Pressure(MAX) | 1500psi/100bar |
| Accuracy(non-approved version) | +/-0.5% |
| Accuracy(approved version) | +/-0.3% |
| Applied Viscosity of Fluid | 8-5000mpa |
| 5-Digital Lcd Display | Liters |
| Inlet and Outlet Connections | 1/2BSP |
| PCS/CTN | 10 |
| N.W.KGS | 8.5 |
| G.W.KGS | 9.5 |
| Packing Size(cm) | 41*81*26 |
**Features:**

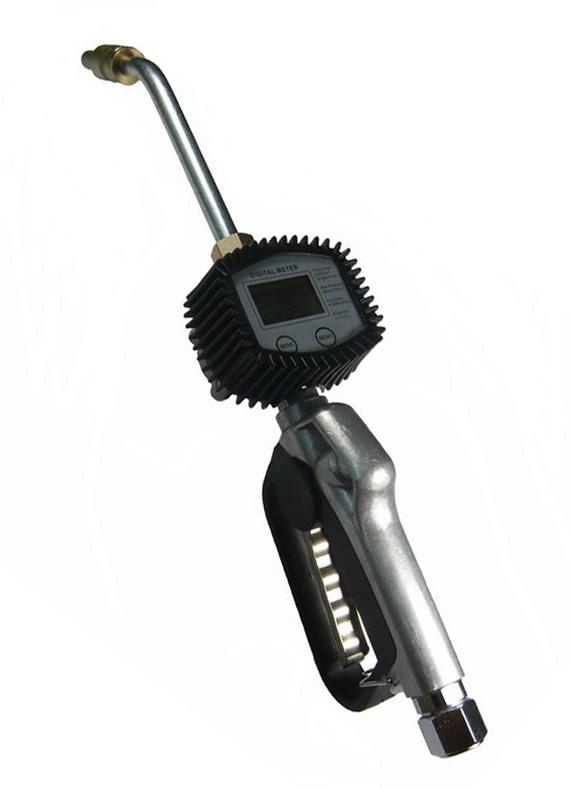

– Digital Oil Gun
The digital oil gun with rigid tube and manual tip, with the appropriate connection to establish a controlled flow through the meter.
– Meter
1. 5 digit liquid crystal display (shows the quantity of single-fueling, and memorizes the total amount)
2. 4 units: L, GAL, PT, and QT
3. Accurate to the second decimal place
4. Low battery indicator
5. 4 buttons: Total, Reset, 1 and 2 (back of the meter)
